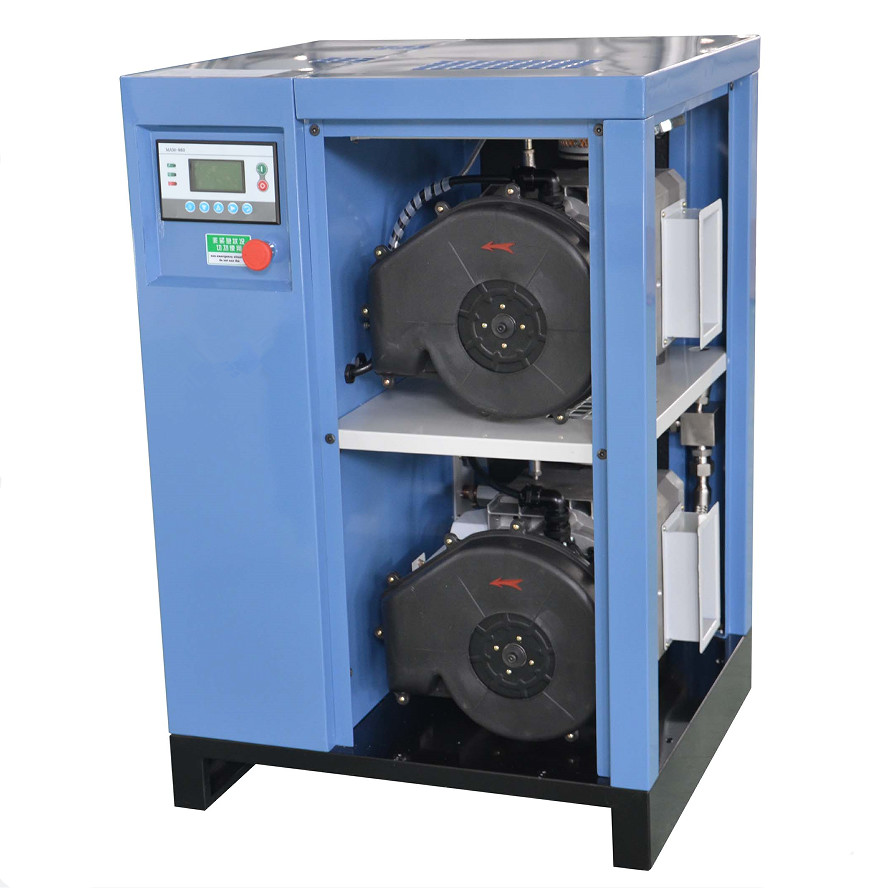

Oil Free Scroll Air Compressor Maintenance free Multi air-ends
Clean Air 100% Oil-Free:
Oil-free type compressors can supply clean air.
Safe Backup Function:
Even if one air end fails, another air end automatically replaces it by jump control. Unmanned operation at night has become easy.
Quality first:
Compressor product quality fully reflects the most modern technology, its design and manufacturing processes are executed in accordance with the requirements of ISO9001 standard, the products meet environmental requirements, quality assurance, safety and reliability, long service life.
Space saving and environmental protection:
The products has compact structure, smaller size, with less occupation of the land, lower noise and vibration, it can be installed in any place where you need it, even in the production area can be used.
Technical parameter of oil-free scroll air compressor
| Model | Motor power | Working pressure | FAD | Noise | Compressed Air Outlet Diameter | Weight | Dimension |
| L×W×H |
| kW | HP | MPa | Psi | L/min | cfm | dB(A) | inch | kg | mm |
| CMW2.2-0.8 | 2.2 | 3 | 0.2-0.8 | 29-116 | 255 | 9 | 49±3 | 1/2" | 132 | 665×630×940 |
| CMW3.7-0.8 | 3.7 | 5 | 0.2-0.8 | 29-116 | 415 | 15 | 52±3 | 1/2" | 150 | 660×665×990 |
| CMW4.4-0.8 | 2.2×2 | 6 | 0.2-0.8 | 29-116 | 510 | 18 | 52±3 | 1/2" | 150 | 800×670×1190 |
| CMW7.4-0.8 | 3.7×2 | 10 | 0.2-0.8 | 29-116 | 830 | 29 | 55±3 | 1" | 185 | 880×670×1190 |
| CMW11-0.8 | 3.7×3 | 15 | 0.2-0.8 | 29-116 | 1245 | 44 | 58±3 | 1" | 300 | 1400×800×1280 |
| CMW15-0.8 | 3.7×4 | 20 | 0.2-0.8 | 29-116 | 1660 | 59 | 61±3 | 1" | 350 | 1400×800×1280 |
| CMW22-0.8 | 3.7×6 | 30 | 0.2-0.8 | 29-116 | 2100 | 74 | 63±3 | 1" | 650 | 1400×800×1870 |
| |
| CMW2.2-1.0 | 2.2 | 3 | 0.2-1.0 | 29-145 | 215 | 8 | 49±3 | 1/2" | 132 | 665×630×940 |
| CMW4.5-1.0 | 4.5 | 6 | 0.2-1.0 | 29-145 | 410 | 14 | 52±3 | 1/2" | 150 | 660×665×990 |
| CMW4.4-1.0 | 2.2×2 | 6 | 0.2-1.0 | 29-145 | 430 | 15 | 52±3 | 1/2" | 150 | 800×670×1190 |
| CMW9-1.0 | 4.5×2 | 12 | 0.2-1.0 | 29-145 | 820 | 29 | 58±3 | 1" | 185 | 880×670×1190 |
| CMW13.5-1.0 | 4.5×3 | 18 | 0.2-1.0 | 29-145 | 1230 | 43 | 61±3 | 1" | 300 | 1400×800×1280 |
| CMW18-1.0 | 4.5×4 | 25 | 0.2-1.0 | 29-145 | 1640 | 58 | 61±3 | 1" | 350 | 1400×800×1280 |
| CMW27-1.0 | 4.5×6 | 45 | 0.2-1.0 | 29-145 | 2100 | 74 | 63±3 | 1" | 650 | 1400×800×1870 |
| |
| CMW3.0-1.2 | 3 | 5 | 0.2-1.2 | 29-174 | 210 | 7 | 49±3 | 1/2" | 135 | 665×630×940 |
| CMW4.5-1.2 | 4.5 | 6 | 0.2-1.2 | 29-174 | 360 | 13 | 52±3 | 1/2" | 150 | 660×665×990 |
| CMW6.0-1.2 | 3×2 | 8 | 0.2-1.2 | 29-174 | 420 | 15 | 52±3 | 1/2" | 150 | 800×670×1190 |
| CMW9-1.2 | 4.5×2 | 12 | 0.2-1.2 | 29-174 | 720 | 25 | 58±3 | 1" | 185 | 880×670×1190 |
| CMW13.5-1.2 | 4.5×3 | 18 | 0.2-1.2 | 29-174 | 1080 | 38 | 61±3 | 1" | 300 | 1400×800×1280 |
| CMW18-1.2 | 4.5×4 | 25 | 0.2-1.2 | 29-174 | 1440 | 51 | 61±3 | 1" | 350 | 1400×800×1280 |
| CMW27-1.2 | 4.5×6 | 45 | 0.2-1.2 | 29-174 | 1980 | 70 | 63±3 | 1" | 650 | 1400×800×1870 |
